Camera Shoulder Mount

Another project completed and off the printer is our Camera Shoulder Mount.

The mount is placed on your shoulder, with the guiding grips in your hands. A camera is then attached to the base. This allows for a stable recording, with a better amount of control.

The project itself is not terribly complex; In total, there are nine printed pieces. The printed pieces are held together by nine standard metric 5mm bolts (and an equivalent number of nuts and washers). Two fifteen millimeter aluminium rods run the length of the contraption. Fifteen millimeter rods are the film industry standard.

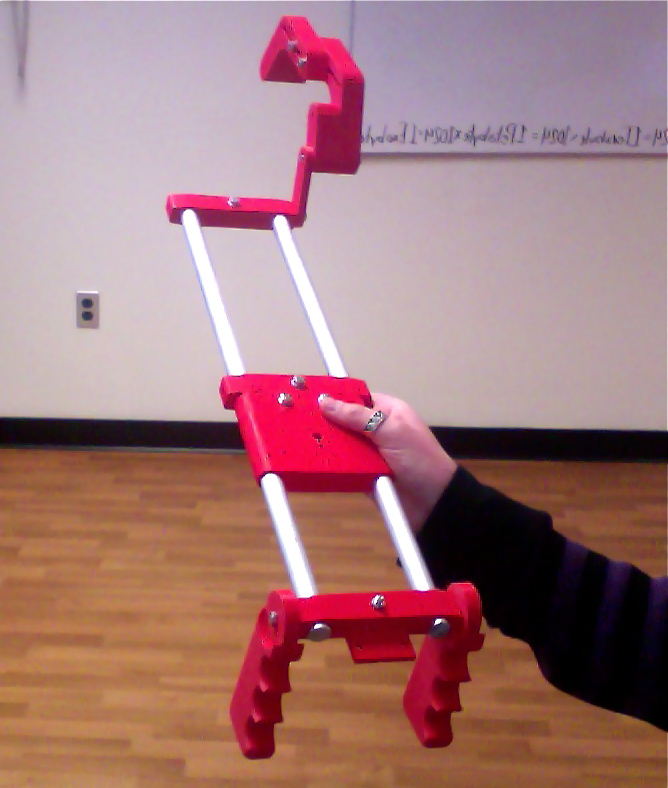

Pictured below is the fully assembled device.

Photo on 4-2-13 at 9.24 AM

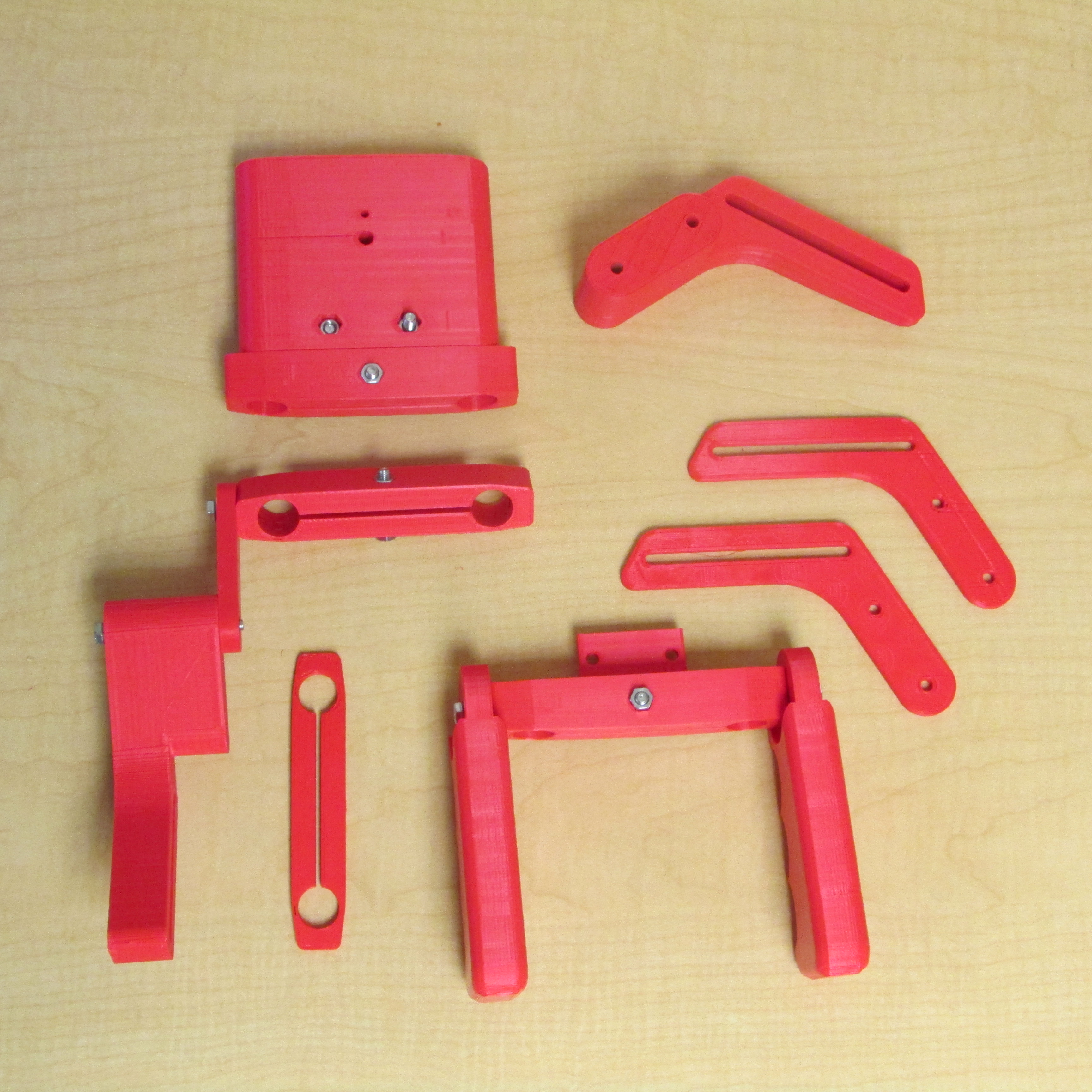

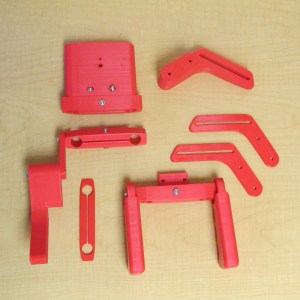

Here are the pieces before assembly

IMG_1584
